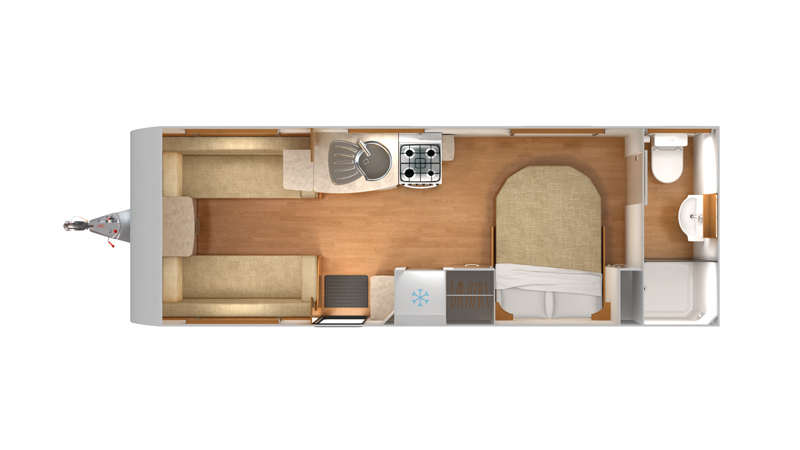

The twin axle Delta TI has a transverse fixed double bed, a large end washroom, great kitchen and a spacious lounge
New for the 2015 season, the transverse bed comes now in an easy action day/night mode.
The stunning curved front panel,full height back panel and the one piece aluminium side panel give the exterior an exceptionally sleek look. While the extra touches like chrome grab handles, LED courtesy lights and elegant new decal design gives this model the stamp of the Lunar marque.
The new 'Sarona' soft furnishings and 'Fondant' luxury pile carpet provide a homely feel, while the new warm "Montana Oak" wood grain, new gloss cream/ "Montana Oak" locker doors and new chrome furniture handles blend together seamlessly.
Highlights for this season also include the stunning "Skyview" rooflight with LED perimeter lighting, over-locker dimmable LED lighting, the "Touch" high impact worktop in "Light" laminate and the new user friendly control panel for quick and easy set up.
The kitchen area is contemporary and elegant with a glossy cream splash back, chrome finish tap, black enamelled sink and beautifully crafted kitchen locker doors with frosted infills. There is also a black panelled Domestic electronic fridge and Aspire separate grill and 42L oven.
Model Gallery
Technical Specification
Specifications
Number of Berths |
4 |
Number of Axles |
2 |
Interior Length |
6.342m (20'10'') |
Shipping Length |
7.883m (25'10") |
Overall Width (includes high level markers) |
2.326m (7'8") |
Maximum Headroom |
1.958m (6'5'') |
Overall Height (includes pinnacle of tv aerial) |
2.658m (8'9") |
Tyre Size |
175/ 65 R14 |
Coupling Height (Fully Laden) |
0.440m (1'5") |
MRO |
1525kg |
Payload |
160kg |
MTPLM |
1685kg |
Actual Awning Length (cm)* |
1090cm (35'9'') |
Bed Sizes
Front Double |
2.105 x 1.844m (6'11" x 6'1") |
Front Single |
1.844 x 0.739m (6'1" x 2'5") |
Front Single |
1.844 x 0.739m (6'1" x 2'5") |
Rear Double |
1.830 x 1.340m (6'0" x 4'5") |
Exterior Features
NEW Decal Design and Colours |
Standard |
NEW Restyled Wheel Spat |
Standard |
AL-KO Galvanized Steel Chassis with One Action Easy Handbrake |
Standard |
Multi Spoke Hyper Silver Alloy Wheels |
Standard |
Underslung AL-KO Spare Wheel Carrier to all Models |
Standard |
Shock Absorbers |
Standard |
Steel Spare Wheel |
Standard |
13 Pin Connection Cable |
Standard |
Step On Hitch Cover |
Standard |
Integrated Precision Engineered Grab Handles in Chrome Finish |
Standard |
Grab Handle Pocket LED Courtesy Lights |
Standard |
1 Piece Higher Gauge Flat Aluminium Panels |
Standard |
Grade 111 Classification for Thermal Insulation & Heating |
Standard |
Full Height Curved Front Panel |
Standard |
3 Opening Front Windows |
Standard |
Low Profile Flush Side Windows |
Standard |
Double Glazed windows and Blinds and Fly Screens |
Standard |
Fully adjustable Window Stays with Night Latch Ventilation Position |
Standard |
Unique Cantilever Hinge Mechanism to Front Gas Locker |
Standard |
Large Easy Access Front Gas Locker |
Standard |
Secure Locking x 2 to Front Gas Locker |
Standard |
Gas Locker to hold the following Bottle types:
|
Standard |
External Battery Locker |
Standard |
External Storage Locker - Nearside with 240 Volt Socket |
Standard |
Exterior Door with Long Window, Heavy Duty Door Handle and Lock |
Standard |
LED Awning Light with Integral Rain Gutter |
Standard |
Lunar Entrance Tray and Doormat |
Standard |
Side Skirts with Intgral Marker Lamps |
Standard |
Colour Coded Awning Rails |
Standard |
Awning Rail incorporating Rain Deflector |
Standard |
Heavy Duty Corner Steadies All Around |
Standard |
Full Height Rear Panel |
Standard |
External Shower Connection Point Complete with Hose and Shower Head |
Standard |
Mud Flaps |
Standard |
External BBQ Point |
Standard |
Black Bezel Insert and Fog Diffuser to Back Panel |
Standard |
Stylish Rear Light Arrays |
Standard |
Off Side Services Light |
Standard |
Auto Changeover Dual Gas Regulator |
Standard |
Underslung 40L Water Tank with Auto Switch Over |
Delta Models Only |
Interior Features
NEW Skyview roof light and LED perimeter lighting |
Standard |
NEW "Montana Oak" Wood Grain |
Standard |
NEW "Touch" High Impact Worktop in "Light" Laminate |
Standard |
NEW Wood Effect Floor Covering |
Standard |
NEW Curved Pelmet Shelving |
Standard |
NEW Gloss Cream/ "Montana Oak" Wood Finish Locker Doors |
Standard |
NEW Chrome Furniture Handles |
Standard |
NEW Luxury Pile Stain-Resistant Duty Carpet in "Fondant" |
Standard |
NEW Soft furnishings Scheme in "Sarona" |
Standard |
NEW Easy Action Day/Night Mode Island Bed |
Model Specific |
NEW Gloss Cream Wardrobe Doors |
Standard |
NEW Over-Locker Dimmable LED Lighting |
Standard |
NEW Black Bezel with Storage Pockets Around Control Panel |
Standard |
Soft Roll Pleated Blinds to all Windows |
Standard |
Hartal Fly Screen to Exterior Door |
Standard |
Bed Ventilation Boards (to improve airflow and reduce condensation) |
Standard |
Front Chest of Drawers |
Standard |
Removable Shelving to Roof Lockers in Front Lounge Areas |
Standard |
Lightweight Freestanding Table |
Standard |
Fully Sprung Upholstery |
Standard |
Aluminium Framed Lift up Front Beds |
Standard |
Full Length Drop Down Flaps to Front Beds |
Standard |
Roll out Slats for Easy Front Double Bed Make Up |
Standard |
Aluminium Framed Lift up Fixed Beds |
Model Specific |
Luxury Pocket Sprung Mattress to All Fixed Bed Models |
Standard |
Midi Heki over all Fixed Beds / Rear Lounge |
Standard |
Chrome LED Ceiling Lights |
Standard |
LED Spotlights Double Lit with Soft Glow Backs |
Standard |
Flush Fitting LED High Level Corner Lights |
Standard |
Waste Bin to Interior of Caravan Door |
Standard |
Decadence Ceiling and Wall Board |
Standard |
Kitchen Features
Black Glass Lid to Cooker Top |
Standard |
Black Enamel Circular Sink with Seprate Drainer |
Standard |
4 Burner Hob with 3 Gas and 1 Electric plate |
Standard |
Aspire Separate Grill and 42L Oven - with Spark Ignition and Flame Failure Device |
Standard |
Pan Door Beneath Oven |
Standard |
Laminated Sink Cover and Plastic Bowl |
Standard |
Chrome Wire Work to Kitchen Lockers |
Standard |
LED Lighting Under Kitchen Eye Level Lockers |
Standard |
Eye Level Microwave Position |
Model Specific |
Safety Cut Off to Electric Plate on Hob Closure |
Standard |
Slide Out Chrome Baskets to Kitchen Base Units |
Standard |
LED Mood Lighting inside Kitchen Eye Level Lockers |
Standard |
Black Paneled Dometic Electronic Fridge with Removable Freezer Compartment |
Standard |
800W 20L Microwave Oven |
Standard |
Colour Co-ordinated Kitchen Taps |
Standard |
Cream Gloss Splash back |
Standard |
Black Panelled 180L Large Capacity Fridge / Freezer With LED Display |
Delta Models Only |
Lift-up Kitchen Flap to Extend Work Surface |
Standard |
Bathroom Features
NEW Restyled Vanity Unit |
Standard |
NEW Curved shelving |
Standard |
NEW Domestic Style Tap |
Standard |
Large Domestic Style Shower Cubicle (End Washroom Models) |
Standard |
Domestic Style Pivot Shower Door (End Washroom Models) |
Standard |
Shower with Dedicated Controls |
Standard |
'Eco Camel' Shower Head / Hose |
Standard |
Chrome Bathroom Fittings |
Standard |
LED Shower Light |
Standard |
Hanging rail in shower |
Standard |
Contemporary Wet Central Heating Bathroom Radiator |
End Washrooms Only |
Mirrored Vanity Area with LED Lighting |
Standard |
Domestic Style Vanity Basin |
Standard |
Pull Cord or External Light Switch to all Bathrooms |
Standard |
Mini Heki to Washrooms (Model Specific) |
Standard |
Offside Toilets in all Models (No Emptying Via Awning Side) |
Standard |
Dometic Ceramic Lined Toilet with LED Indicators for Toilet and Flush Tank |
Standard |
Clothes Hooks in all Bathrooms |
Standard |
Domestic Style Sliding Door/Handle to Bathrooms (Model Specific) |
Standard |
Domestic Style Door with Handle and Lock to Bathrooms (Model Specific) |
Standard |
Electrical Features
NEW User Friendly Control Panel |
Standard |
Alde touch screen control panel |
Standard |
12 Volt Charger and Mains Transformer |
Standard |
Colour Co-ordinated 230v Mains Sockets |
Standard |
Low Level LED Night Time Courtesy Light |
Standard |
Mains Connection Lead (25 Metre) |
Standard |
Mains Inlet with ELCB Protection |
Standard |
100% LED Interior Lighting Throughout |
Standard |
LED Light Inside All Wardrobes |
Standard |
Audio Features
NEW CD/ Radio/MP3 console with Bluetooth and USB Functions |
Standard |
2 Additional Speakers to Bedrooms |
Standard |
2-4 x TV points in all Models - all with Satellite Connection |
Standard |
Status 530-5 TV Aerial - Multi-Directional and Fully Adjustable |
Standard |
Signal Strength Indicator for Status TV Aerial |
Standard |
TV / Power Socket to Front Bulkhead Shelf |
Standard |
Plumbing Features
Alde Hydronic Wet Central Heating System |
Standard |
External shower connection point |
Standard |
Isolation Taps for All Gas Appliances |
Standard |
Pressurised Water System with Semi-rigid Piping |
Standard |
Safety and Security Features
AL-KO ATC Trailer Control System |
Standard |
Phantom Tracker Complete with 12 Months Subscription |
Standard |
AL-KO AKS Stabiliser |
Standard |
AL-KO Jack |
Delta Only |
AL-KO-Secure Receiver |
Standard |
AL-KO-Secure Wheel Lock, 2 on Delta Models |
Standard |
CO Alarm |
Standard |
Smoke Alarm |
Standard |
Snake Cut Key to all Locks |
Standard |
CRIS Identity Etched onto Windows |
Standard |
Unique Hidden Identity Tag |
Standard |
Remote Control Fob to Control Alarm and Awning Light |
Standard |
Security Alarm with PIR and Tilt Sensors |
Standard |
Optional Extras
| Description | Cost RRP inc VAT | Additional Weight | Standard |
|---|---|---|---|
AL-KO Secure wheel locks (per lock) |
£239.00 | 2kg | Yes |
AL-KO ATC trailer control |
£349.00 | 2kg | Yes |
Remote control key fob alarm/Awning light |
£299.00 | 1kg | Yes |
Wrap around seating in addition to drawer chest |
£139.00 | Nil | No |
Fabric Change (Kassis or Kyla scheme) |
£299.00 | N/A | No |
Fabric Change - 'Aquaclean' Carabu upholstery scheme |
£349.00 | N/A | No |
On Route Heating - Retailer fit* |
£149.00 | Nil | No |
Phantom Tracker (Includes 12 months subscription) |
£449.00 | Nil | Yes |
Dometic Extractor Unit - Retailer fit* |
£249.00 | 2.2kg | No |
40w Solar panel - Retailer fit* |
£249.00 | 5.2kg | No |
Glamourshield - Retailer fit* |
£399.00 | Nil | No |
